حائط الحائط الزجاجي للمكتب
Created with Pixso.

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness

الاسم التجاري: AE
رقم الطراز: نظام بانورامي EGG-100C
الـ MOQ: 10 متر مربع
السعر: USD69-92Per Square Meter
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام
قدرة الإمداد: 1000 متر مربع في الشهر
معلومات مفصلة
مكان المنشأ:
قوانغدونغ، الصين
إصدار الشهادات:
ISO9001 SGS
اسم المنتج:
قسم زجاجي مؤقت
مادة:
إطار من الألومنيوم + زجاج
معيار الإنتاج:
على أساس الرسومات التنفيذية التي وافق عليها المشتري
ملف تعريف القسم المعلق:
جدران عازلة للصوت مصنوعة من سبائك الألومنيوم وشريط PVC
زجاج حاجز معلق:
زجاج مقسّى شفاف، زجاج مصنفر، زجاج محفور بالحامض
تصميم:
OEM و ODM
عزل الصوت:
30-42 ديسيبل
تفاصيل التغليف:
طبقة من الرغوة والكرتون الصلب مع علبة من الخشب الرقائقي
إبراز:

Sound Insulation 30-42dB Glass Partition Wall,108mm/90mm Thickness Office Glass Partition,Up to 3000mm Height Demountable Glass Partition

,

108mm/90mm Thickness Office Glass Partition

,

Up to 3000mm Height Demountable Glass Partition

وصف المنتج
Panoramic Demountable Glass Partitions, Temporary Glass Partition Walls with Aluminium Frame

Panoramic demountable temporary office glass partition walls with aluminium frame provide an excellent solution for enhancing office interiors by maximizing natural light distribution. Both fixed and portable single-glazed glass partitions effectively brighten workspaces, with portable options offering superior flexibility for layout adjustments.

Should you need to modify your office layout after initial installation, relocating these portable partitions is a cost-effective process that can significantly improve your workspace environment without major expenses. Investing in high-quality temporary glass partition systems reduces ongoing costs while improving occupancy rates, giving building managers a competitive advantage in today's market.

Installation Process
  • Pre-renovation site measurements must be conducted to ensure proper fit
  • Design drawings are created based on measurement data and site structure, requiring mutual confirmation before proceeding
  • Partition production typically occurs in the design company's factory, while installation is completed on-site
  • Final specifications including glass thickness, materials, hardware accessories, and borders are confirmed after design approval
Technical Specifications
Feature Specification
Wall Thickness 108mm/90mm
Height Up to 3000mm
Grid Width Up to 1200mm
Weight 70-80kg/sq.m
Attachment to Building Structure Concealed connections to slab and walls; perimeter sealing; ±10mm height/width tolerance
Glass Thickness 10mm/12mm tempered
Visibility Options Transparent, colored, or matte glass; between-the-glass blinds; foil, screen printing, enamel
Description Aluminium-framed glazed partition with in-plane streamlined appearance featuring structurally adhered double-glazing
Project Examples

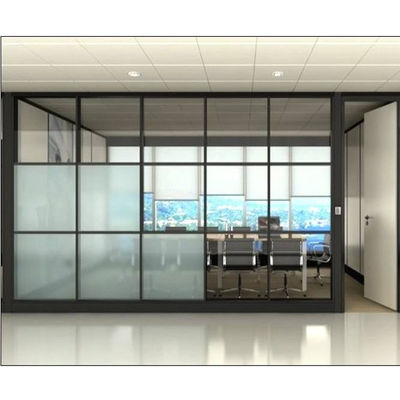

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness 0

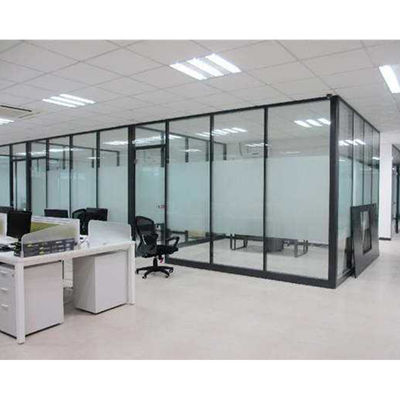

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness 1
Our Services

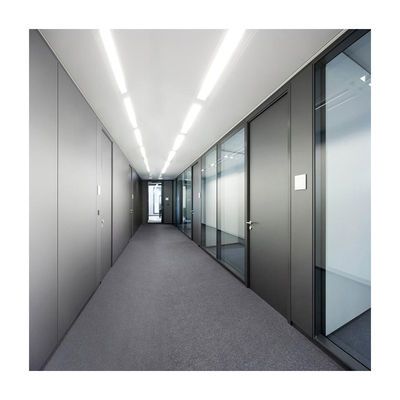

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness 2

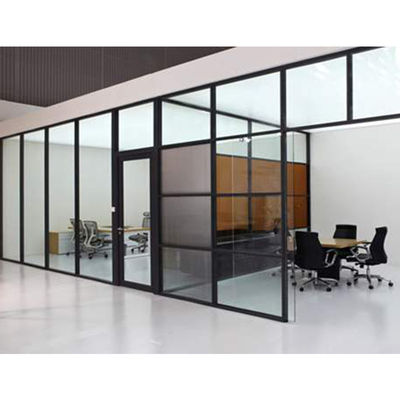

Demountable Office Glass Partition Wall with 30-42dB Sound Insulation and 108mm/90mm Thickness 3
