Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms

Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms

الاسم التجاري: AE
رقم الطراز: السلسلة 100
الـ MOQ: 10 متر مربع
السعر: USD 90-135 per square meter
شروط الدفع: ل / c، / تي تي، ويسترن يونيون
قدرة الإمداد: 1000 متر مربع في الشهر
معلومات مفصلة
مكان المنشأ:
قوانغدونغ، الصين
إصدار الشهادات:
ISO9001 SGS CANS
نموذج:
جدار التقسيم المنقول
لوحة قاعدة:
المواد المقدمة من قبل العميل
تطبيق:
قاعة الحفلات، قاعة المؤتمرات
سماكة:
105 سم
تقييم شركة الاتصالات السعودية:
42-56 ديسيبل
أبعاد:
التخصيص (الارتفاع: حتى 12 مترًا، العرض لكل لوحة: حتى 1.2 مترًا)
الاسم:
جدار التقسيم المنقول
تفاصيل التغليف:
طبقة الرغوة والكرتون الصلب مع علبة الخشب الرقائقي أو منصة فولاذية
إبراز:

STC Rating 42-56dB Movable Partition Wall,105CM Thickness Movable Partition Wall,Customizable Dimensions Movable Partition Wall

,

105CM Thickness Movable Partition Wall

,

Customizable Dimensions Movable Partition Wall

وصف المنتج
Acoustic Conference Room Movable Partition Wall with Passageway Door
Intelligent solutions for flexible space utilization. Our sound-insulated or transparent movable partition walls enable efficient space configuration for virtually any application.
Key Advantages
  • Extensive experience with demanding commercial projects
  • Reliable delivery time management for large orders
  • Dedicated R&D team for custom product development
  • SGS & ILAC-MRA certified product performance
  • 24-hour response to all product and pricing inquiries
  • Fluent English-speaking support staff
  • Custom manufacturing to your specifications
Roller System Features
  • Dupont POM rollers for smooth operation
  • 304 stainless steel heavy-duty rollers with safety mechanisms
  • Patented wheel design for effortless partition movement
Technical Specifications
Series Element Thickness (mm) Element Width (mm)* Clear Height (mm)* Construction Panel Fixing Vertical Profile Design
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Magnetic strip with sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Magnetic strip with sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Magnetic strip with sealing lips
* Larger dimensions available upon request. Final specifications subject to engineering review.
** Sound insulation performance: Weighted sound reduction value (Rw) 52-56 dB (GB/T19889.3-2005)
*** Vertical connection system: Convex-concave profile with 40 N/m magnetic attraction force

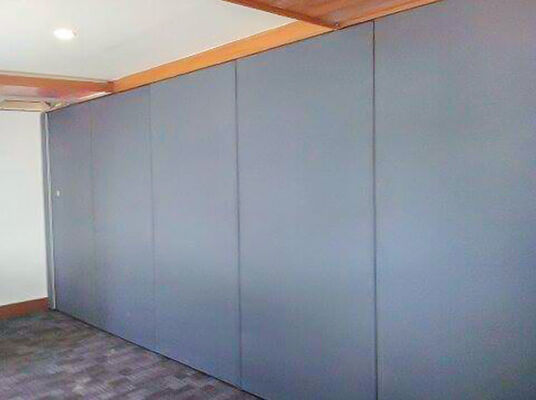

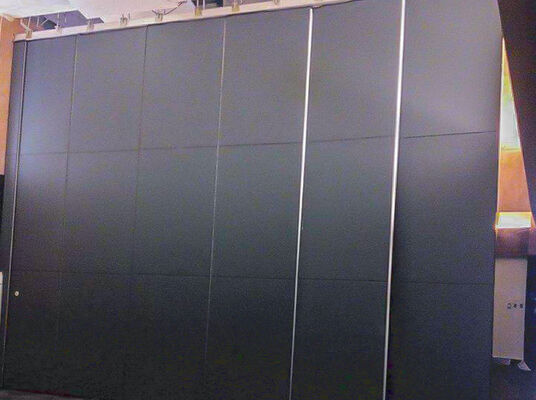

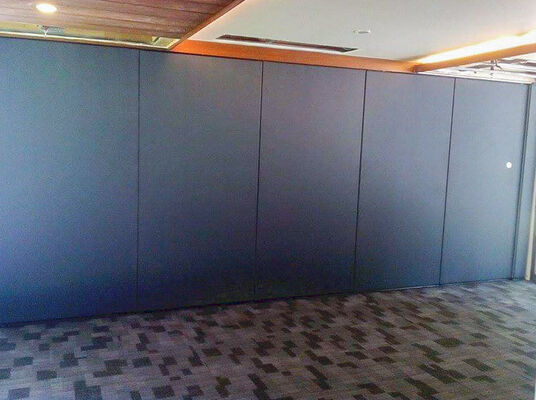

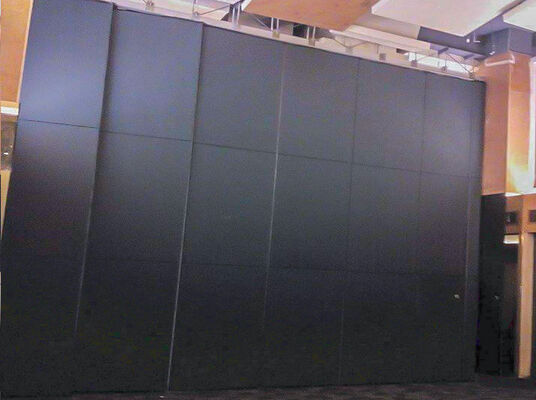

Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms 0 Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms 1 Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms 2
